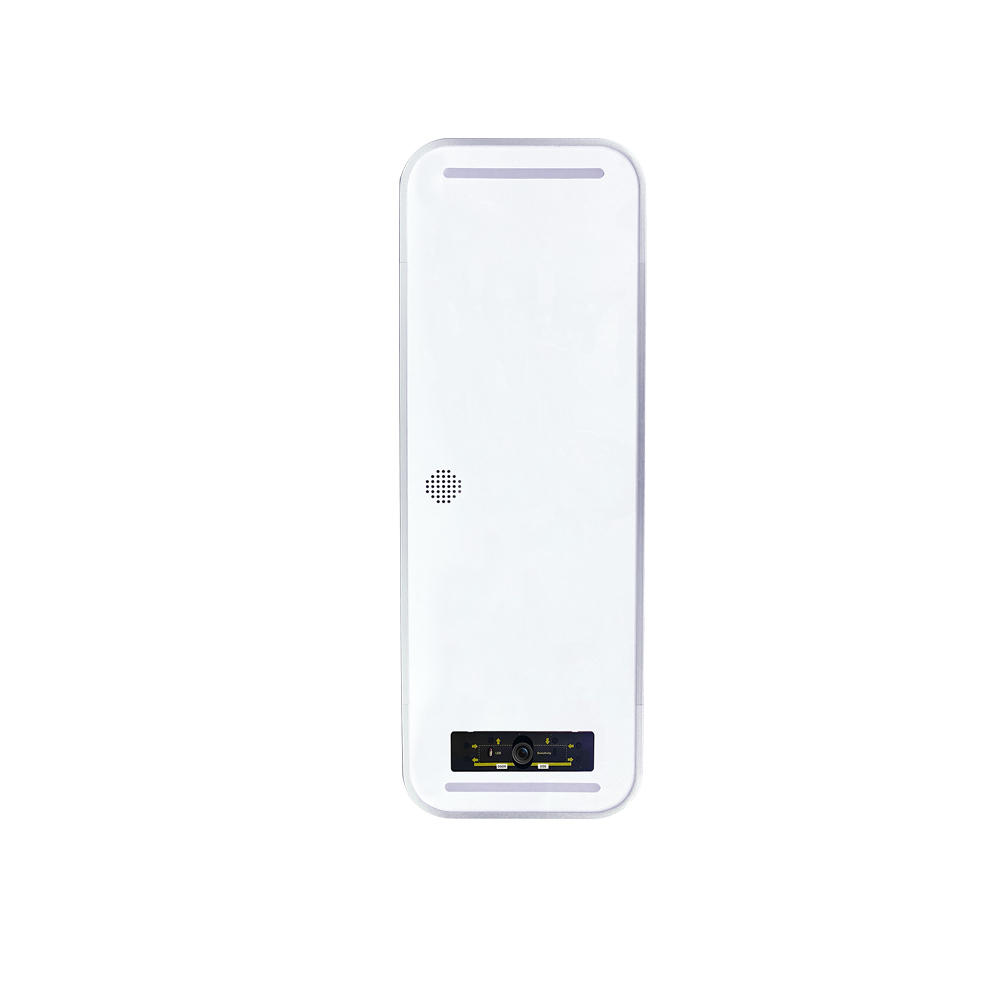

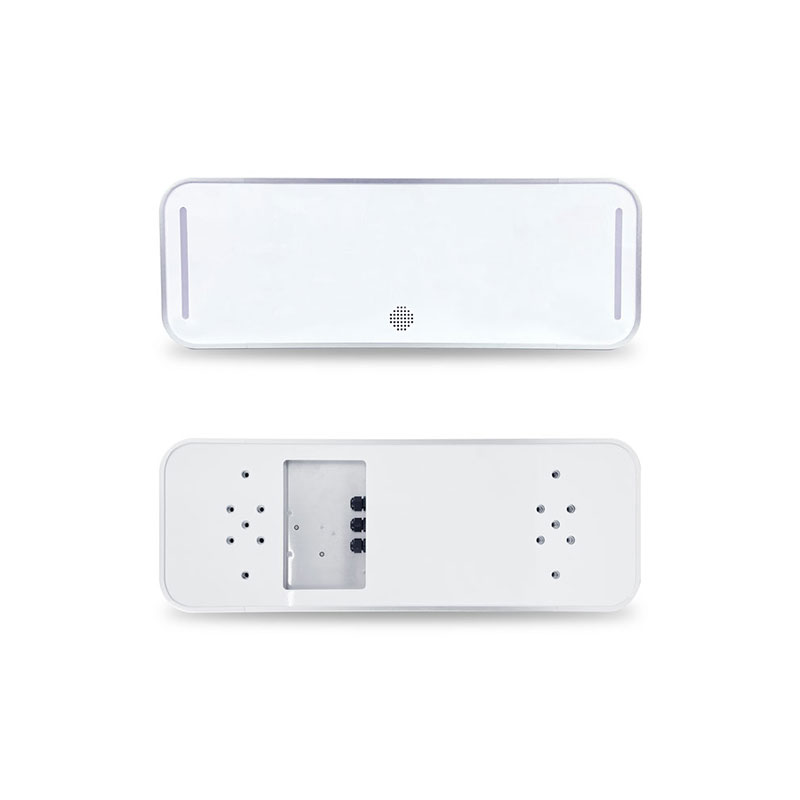

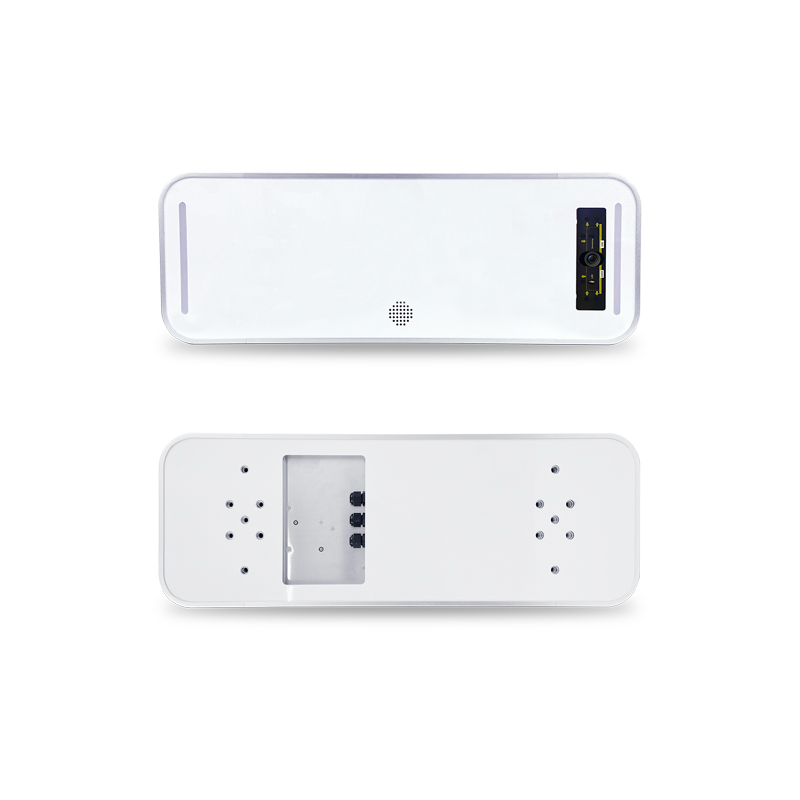

AI Camera UHF RFID Antenna

LIFANGMEI introduces the Overhead UHF RFID Antenna (LFM-DZ002) – a high-performance overhead RFID antenna with built-in AI camera for humanoid detection. Supports ISO18000-6C protocol, output power 10dBm~33dBm adjustable, strong multi-tag reading capability, HD 1080P camera with 100ms response speed and ±20° viewing angle adjustment. Built-in alarm light and buzzer. Features RJ45 Ethernet, USB ports, GPIO 4 input + 8 output channels, compatible with Android 11, Ubuntu, Debian, OpenHarmony. Blue/Red/Green LED indicators. Ideal for shopping malls, clothing stores, luggage stores, shoe and hat stores. Trust LIFANGMEI for intelligent retail solutions.

Send Inquiry

Product Description

Picture Your Store with Eyes in the Ceiling

Your store is busy. Customers browse. They pick up items. They put them back. They walk to the register. Some walk to the exit.

What do you actually see? Not much. Just movement.

LIFANGMEI changes that with the LFM-DZ002 Overhead UHF RFID Antenna with AI Camera.

Mount it overhead. It reads every RFID tag within range. It sees every person in its view. It tells you what was picked up. Who picked it up. When. And where.

The camera is HD 1080P. It detects humanoid shapes in 100 milliseconds. It adjusts ±20° to capture exactly what you need.

The RFID reader handles multiple tags at once. Adjustable power from 10dBm to 33dBm covers your entire read zone.

Blue light for standby. Red for alarm. Green when tags pass authorization. No guessing. No confusion.

PoE power. Ethernet connectivity. GPIO ports. USB. It connects to everything.

And installation? Three ways. Hang it. Mount it on the wall. Hook it on a tube. Five minutes. Done.

The LFM-DZ002 Overhead UHF RFID Antenna with AI Camera from LIFANGMEI. Your store finally has eyes.

Technical Specification

Parameter	Specification
Product Name	Overhead UHF RFID Antenna (LFM-DZ002)
Manufacturer	LIFANGMEI
Model	LFM-DZ002
Protocol	EPC C1 G2 (ISO18000-6C)
Output Power	10dBm ~ 33dBm (adjustable)
AI Camera	HD 1080P
Detection Function	Humanoid Detection
Response Speed	100ms
Viewing Angle Adjustment	±20°
Communication Interface	RJ45 (10/100/1000Mbps Ethernet)
USB Ports	1x USB 2.0 (Device/HOST), 2x USB 2.0 HOST, 1x USB 3.0 HOST
GPIO	4 input + 8 output channels (up to 250mA each)
Indicator Lights	Blue (Standby), Red (Alarm), Green (Tag Authorized)
Alarm	Built-in buzzer + alarm light
Power Supply	9~24V (Standard adapter 12V/2A) / PoE (802.3af or 802.3at)
Standby Power	1.76W
Working Power	16.2W
Operating Temperature	-25℃ ~ 65℃
Storage Temperature	-45℃ ~ 85℃
Humidity	5~95% non-condensing
Dimensions	575 × 200 × 45 mm
Packaging Dimensions	790 × 245 × 90 mm
Net Weight	1.95 kg
Gross Weight	2.80 kg
Supported Operating Systems	Android 11, Ubuntu 22.04/20.04, Debian 11/12, OpenHarmony 4.0 Beta1, Orange Pi OS(Arch), Orange Pi OS(OH)
ESD Protection	Air discharge: 8kV; Contact discharge: 6kV; Surge immunity: 4kV
PoE Power Supply Capability	100m Category 5e cable; 803.at mode max load 25.1W (11.93V/2.1A)

LFM-DZ001 vs LFM-DZ002 Comparison

Feature	LFM-DZ001	LFM-DZ002
Detection Technology	24G Human Radar Detector	AI Camera
Camera Resolution	N/A	HD 1080P
Response Speed	Radar-based	100ms
Viewing Angle Adjustment	N/A	±20°
Net Weight	1.35 kg	1.95 kg
Gross Weight	2.45 kg	2.80 kg
Best For	Presence detection	Visual + humanoid detection
