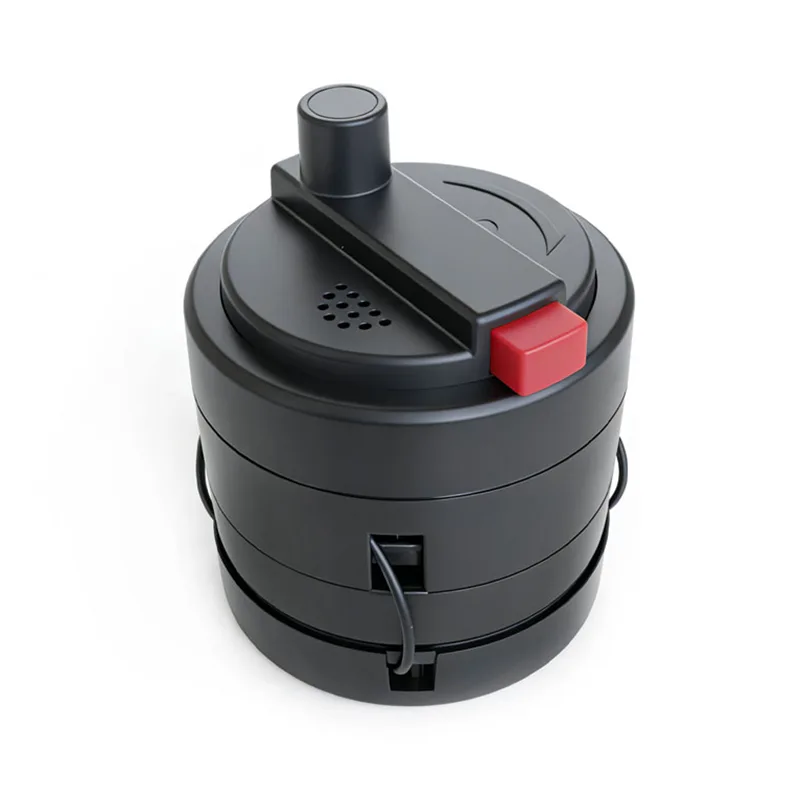

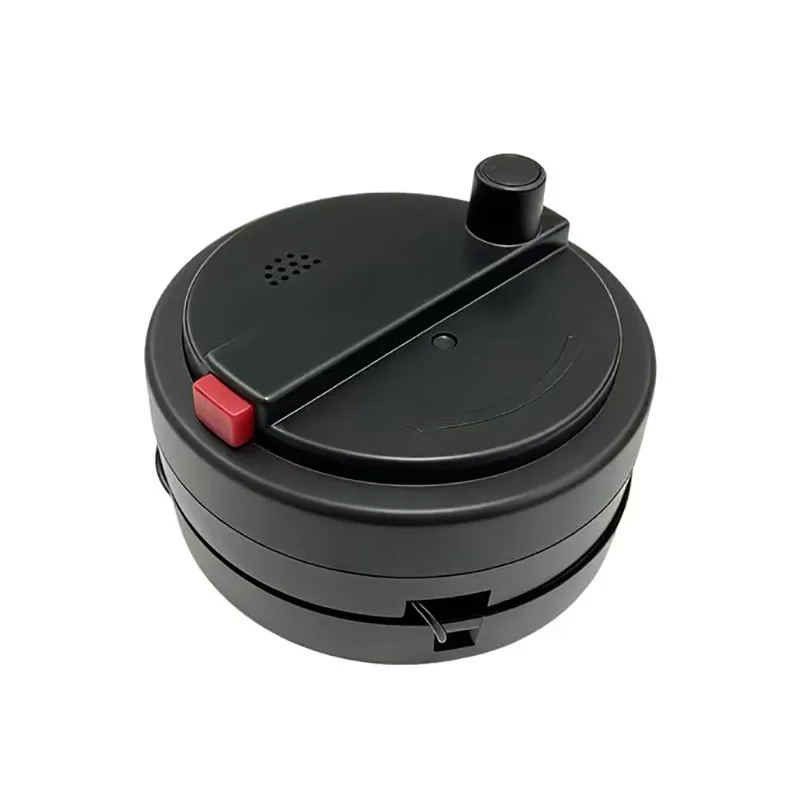

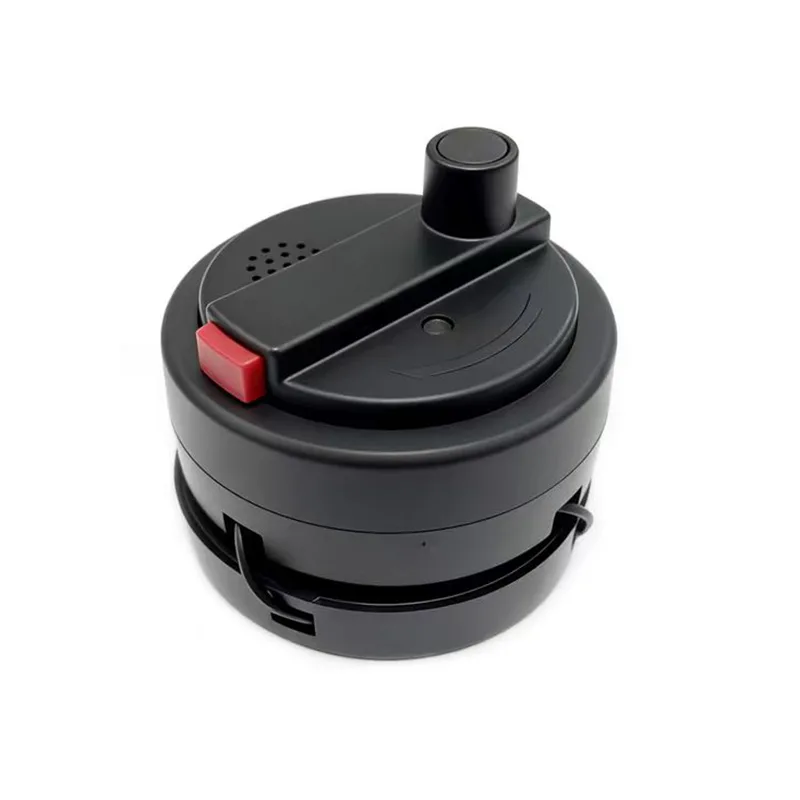

EAS Anti-Theft Self Alarm Spider Wrap

LIFANGMEI has years of specialization in retail anti-theft solutions, serving retailers across Europe, America, Asia, and the Middle East. Our EAS Anti-Theft Self Alarm Spider Wrap is a self-alarming security tag with four extendable, length-adjustable steel cables – suitable for all types of boxed merchandise. It triggers the EAS gate alarm as a common tag when near the detection system. Additionally, if the cables are cut – even away from the EAS gate – the built-in button battery and mini alarm trigger an immediate 90dB+ sound and red flashing light. Dual or triple protection for your high-value merchandise. Features include exquisite design, super fast 5s cable winding, rugged enclosure against 1min knocking, low power consumption, and extremely low probability of self-lock. Three models available: SWC, SWB, SWA.

Send Inquiry

Product Description

EAS Anti-Theft Self Alarm Spider Wrap – Dual Protection: EAS Gate + Self-Alarming Cut Detection

The LIFANGMEI EAS Anti-Theft Self Alarm Spider Wrap is a professional self-alarming security tag designed for high-value boxed merchandise. Unlike standard spider wraps that only trigger EAS gates, this tag has built-in intelligence – it sounds an alarm immediately if the cables are cut, even when not near an EAS detection system.

How It Works – Dual Protection

Protection Layer	How It Works
Layer 1: EAS Gate Detection	Triggers standard EAS alarms (58kHz AM / 8.2MHz RF) when near detection gates
Layer 2: Self-Alarm (Cut Detection)	Built-in battery and mini alarm trigger immediately if cables are cut – 90dB+ sound + red flashing light

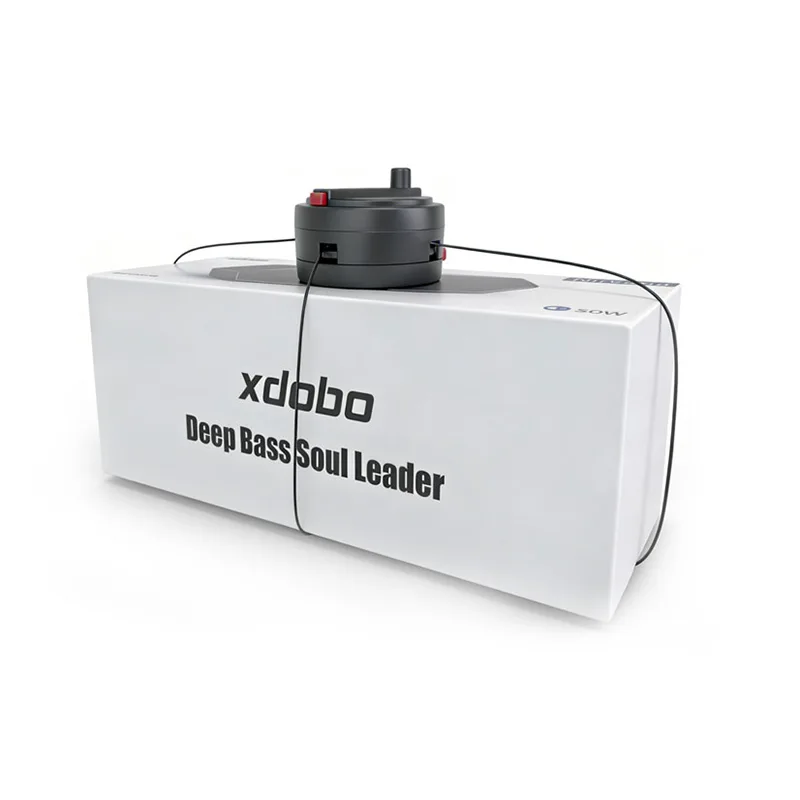

Four Adjustable Cables

The tag features four extendable, length-adjustable security cables that wrap around boxed merchandise of various sizes. The cables retract quickly – super fast 5-second cable winding – making application and removal efficient at the point of sale.

Dual or Triple Protection

Depending on your configuration, this spider tag provides:

Dual protection: EAS detection + self-alarm on cut

Triple protection: EAS detection + self-alarm on cut + visible deterrent (red flashing light)

Three Models Available

Model	Retract Way	Dimension	Net Weight	Cable Length
SWC	Manual/Automatic	Φ50 ×47mm	47g	500mm (600mm optional)
SWB	Manual/Automatic	Φ70 ×47mm	83.8g	800mm (1200mm optional)
SWA	Manual/Automatic	Φ70×60mm	110g	800mm (1200mm optional)

Rugged & Durable

The rugged enclosure withstands 1 minute of knocking – designed to resist tampering attempts. Locking force is ≥240N pulling force and ≥800N pressure force.

Long Battery Life

With static power consumption ≤2μA and battery life ≥3 years (CR2032 button battery), these tags are ready for long-term use in retail environments.

Alarm Specifications

Alarm Volume: ≥90dB (loud enough to deter thieves)

Alarm Duration: Stops automatically after 5 minutes ±10 seconds

Alarm Status: Buzzer beeps + red light flashes

Light Reminder: Green light flashes once every 40±5 seconds (normal operation)

Technical Specification

Common Specifications (All Models)

Parameter	Value
Frequency Options	58kHz AM / 8.2MHz RF (selectable)
Dual Alarm	Yes (EAS gate + self-alarm on cut)
Lock Type	Normal (5000GS) / Super (8500GS)
Battery	CR2032 button battery
Battery Life	≥3 years
Static Power	≤2μA
Alarm Current	≤20mA
Alarm Volume	≥90dB
Alarm Duration	5 minutes ±10 seconds (auto stop)
Locking Reminder	Buzzer sounds once + green light flashes once
Alarm Status	Buzzer beeps + red light flashes
Light Reminder	Green light flashes once every 40±5 seconds
Pulling Force	≥240N
Pressure Force	≥800N
Working Temperature	0℃ ~ 40℃
Working Humidity	20% ~ 85%
Color	Black (customized available
