High-Gain UHF RFID Antenna with Direction Tracking

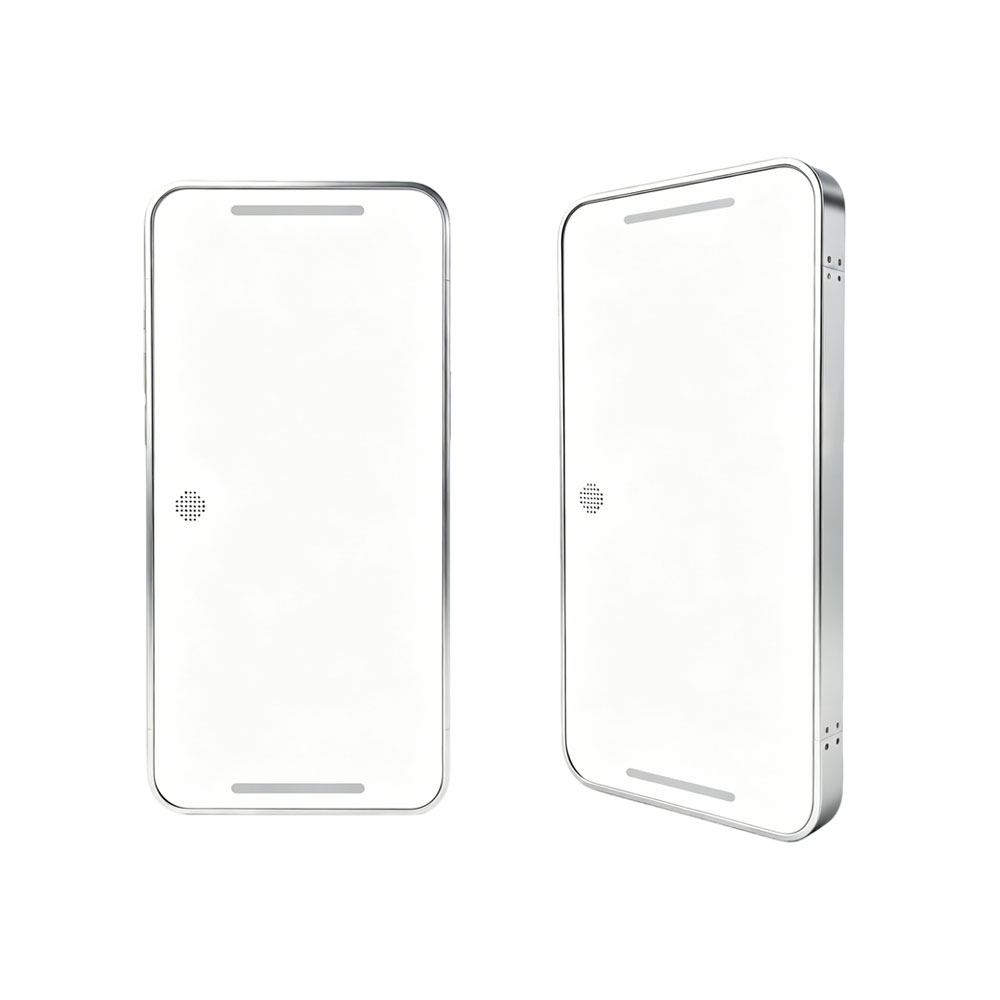

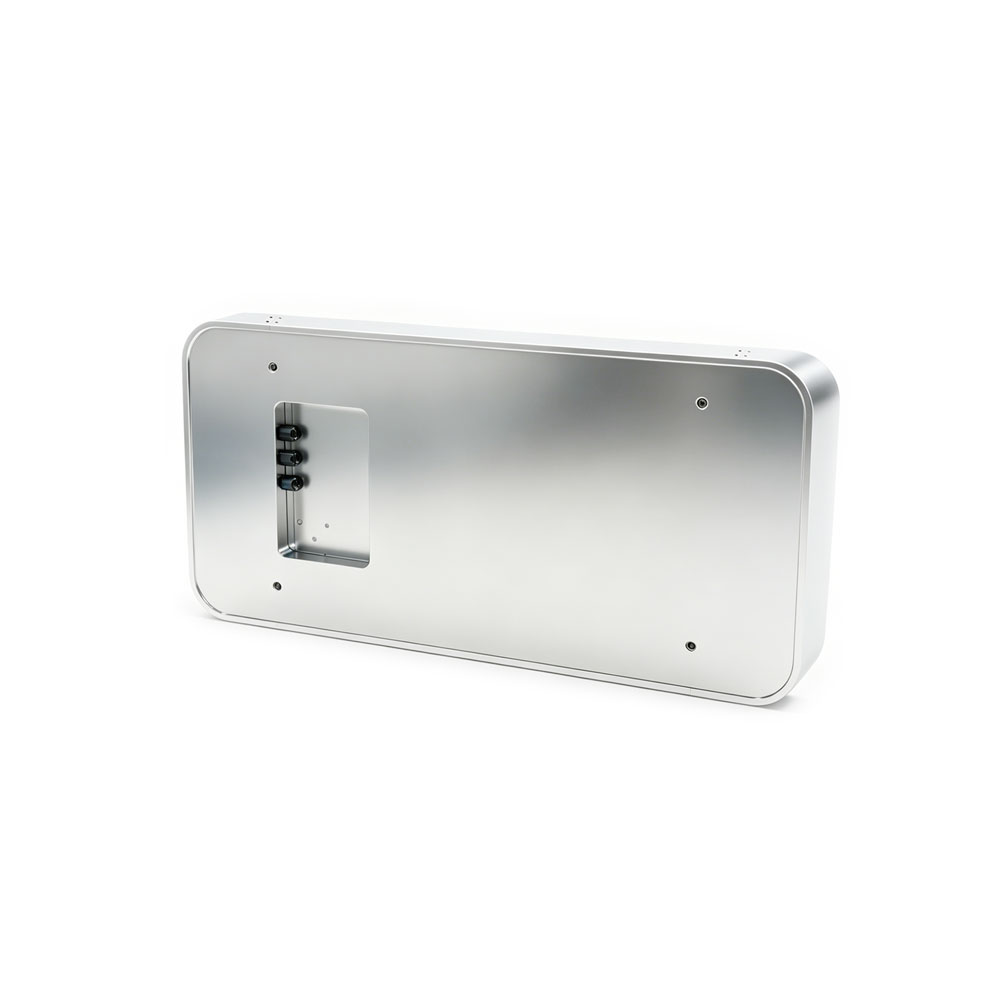

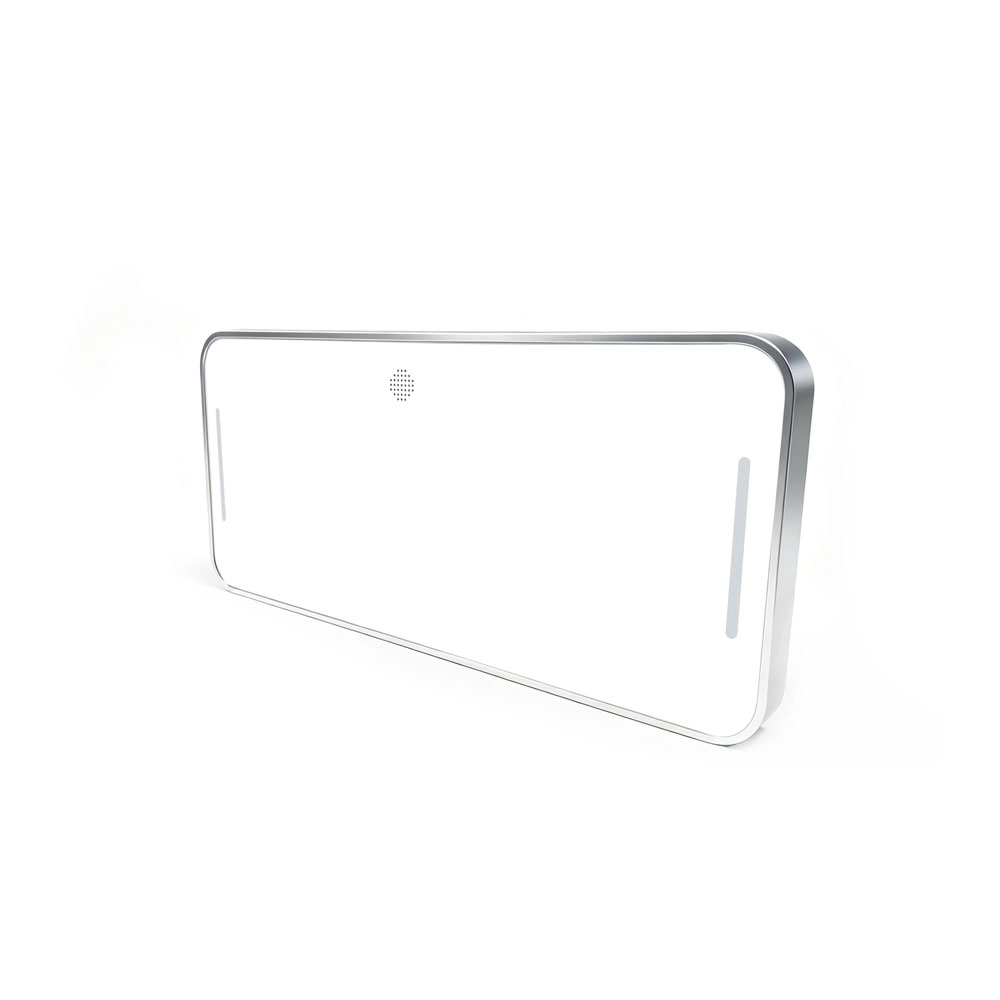

LIFANGMEI introduces the LFM-DZ003 Overhead Antenna – a high-performance overhead UHF RFID antenna with high-gain design. Supports ISO18000-6C protocol, output power 10dBm~33dBm adjustable, strong multi-tag reading capability, and precise tag movement direction tracking. Features RJ45, RS232, RS485, optional WiFi/4G/PoE, GPIO 4 input + 8 output channels, built-in alarm light and buzzer. Blue/Red/Green LED indicators. Compared to previous versions, the LFM-DZ003 Overhead Antenna offers more precise alarm zone control, fewer false reads, and intelligently ignores unauthorized tags moving from outside to inside. Ideal for shopping malls, clothing stores, shoe stores, and bag stores. Trust LIFANGMEI for intelligent retail solutions.

Send Inquiry

Product Description

The Old Way: Alarms for Everything

Old overhead antennas read tags. That's it. Tag passes through the door – alarm sounds. Tag moves outside to inside – alarm sounds. Tag moves inside to outside – alarm sounds. Everything triggers. False alarms everywhere. Staff ignores them. Real theft gets lost in the noise.

The LFM-DZ003 Overhead Antenna Way: Alarms Only When It Matters

LIFANGMEI built the LFM-DZ003 Overhead Antenna to solve this problem. It doesn't just read tags. It tracks tag movement direction.

Tag moving from inside to outside? Alarm. That's a potential theft.

Tag moving from outside to inside? No alarm. That's just a customer walking in.

Two Key Advantages Over the Old Version

Advantage Old Version (LFM-DZ001) LFM-DZ003 Overhead Antenna

Alarm Zone Control Less precise – alarms for any tag More precise – fewer false reads

Tag Movement Direction Cannot recognize direction Recognizes direction – ignores outside-to-inside

Store Display Products must be kept further from door Products can be displayed nearer to the door

More Features, Better Connectivity

High-gain antenna – stronger multi-tag identification

RJ45, RS232, RS485 – plus optional WiFi, 4G, PoE

HTTP, HTTPS, MQTT, TCP, UDP protocols

Linux/Debian 12 operating system

GPIO: 4 input + 8 output channels

Built-in alarm light and buzzer

The LFM-DZ003 Overhead Antenna from LIFANGMEI – Smarter alarms. Fewer false reads. More display space.

Technical Specification

Parameter	Specification
Product Name	LFM-DZ003 Overhead Antenna
Manufacturer	LIFANGMEI
Model	LFM-DZ003
Protocol	EPC C1 G2 (ISO18000-6C)
Output Power	10dBm ~ 33dBm (adjustable)
Tag Movement Tracking	Precise direction recognition (inside→outside alarms; outside→inside ignored)
Communication Interfaces	RJ45 (10/100M), RS232 (9600-230400bps), RS485 (19200-230400bps)
Optional Communication	WiFi (2.4G/5.8G), 4G (full band), PoE (802.3af/802.3at)
Communication Protocols	HTTP, HTTPS, MQTT, TCP, UDP
Operating System	Linux / Debian 12
GPIO	4 input + 8 output channels (up to 250mA each)
Indicator Lights	Blue (Standby), Red (Alarm), Green (Tag Authorized)
Alarm	Built-in buzzer + alarm light
Power Supply	9~24V (Standard adapter 12V/2A) / PoE (802.3af or 802.3at)
Standby Power	1.76W
Working Power	16.2W (single board working: 0.7W)
Operating Temperature	-25℃ ~ 65℃
Storage Temperature	-45℃ ~ 85℃
Humidity	5~95% non-condensing
Product Dimensions	650 × 300 × 45 mm
Net Weight	3 kg
ESD Protection	Air discharge: 8kV; Contact discharge: 6kV; Surge immunity: 4kV

Why Choose LIFANGMEI LFM-DZ003 Overhead Antenna？

Why LIFANGMEI?	What You Get
Tag Movement Direction Recognition	The LFM-DZ003 Overhead Antenna knows inside from outside – no more false alarms
High-Gain Antenna Design	Stronger multi-tag reading than previous versions
More Display Flexibility	Place products closer to the door – more sales space with the LFM-DZ003 Overhead Antenna
Fewer False Reads	Precise alarm zone control – staff won't ignore real alarms
Multiple Communication Options	RJ45, RS232, RS485, WiFi, 4G, PoE – the LFM-DZ003 Overhead Antenna connects to everything
Independent Intellectual Property	Unique design – developed in-house by LIFANGMEI
Factory Direct Manufacturer	Competitive pricing – direct from LIFANGMEI
Global Export	Serving retailers across Europe, America, Asia, and the Middle East
Quality Testing	Every unit tested before shipping – reliable performance
