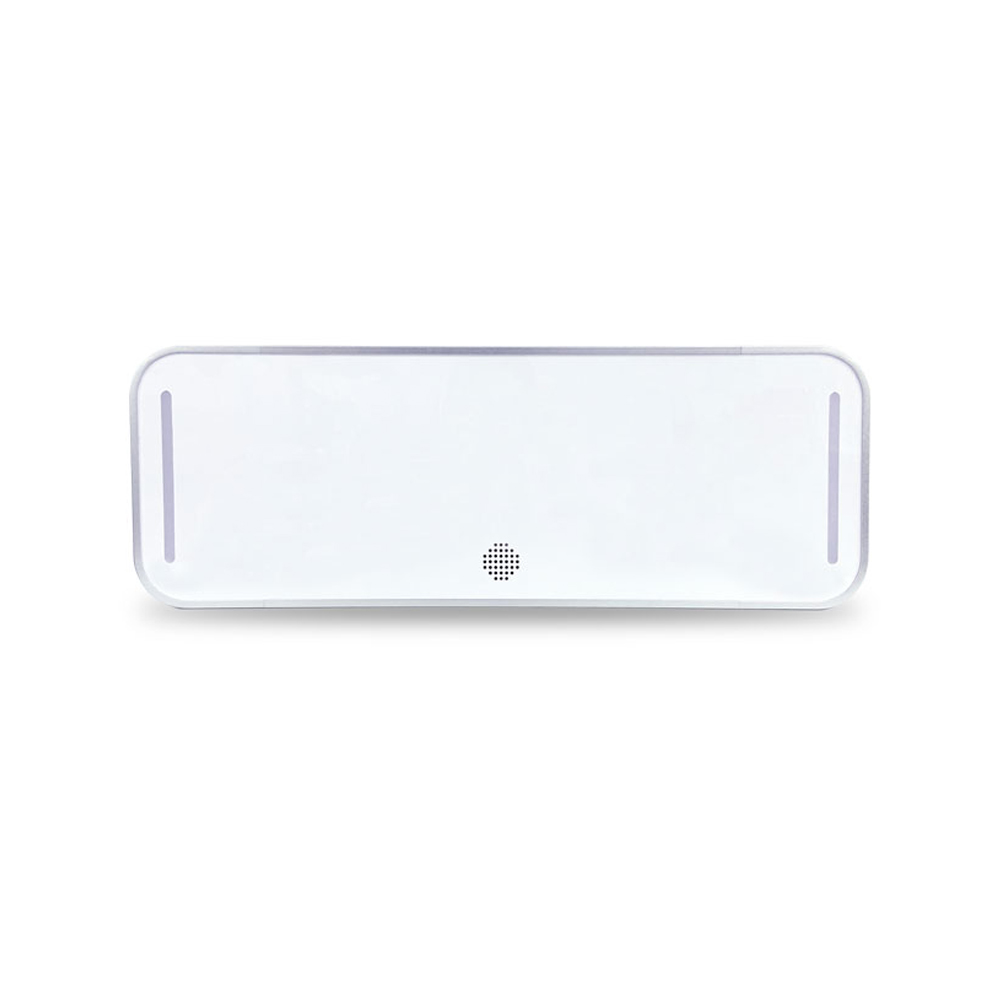

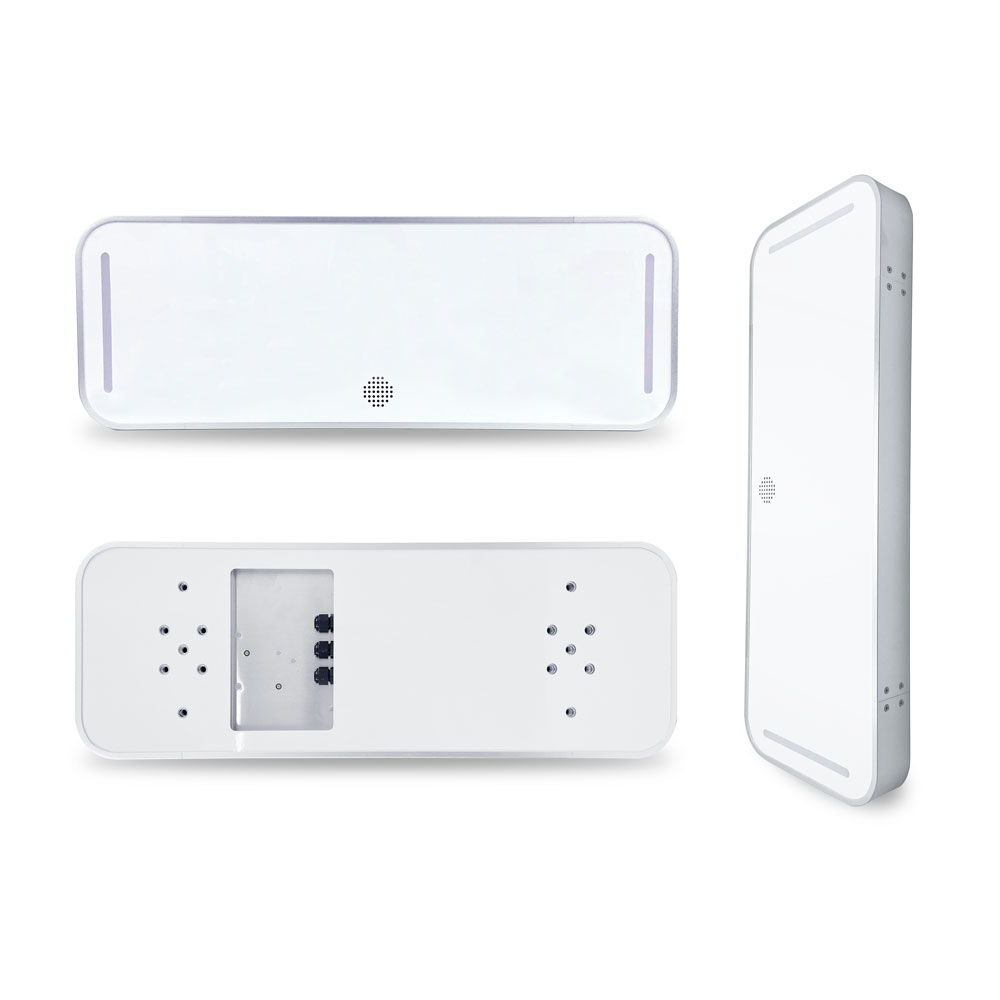

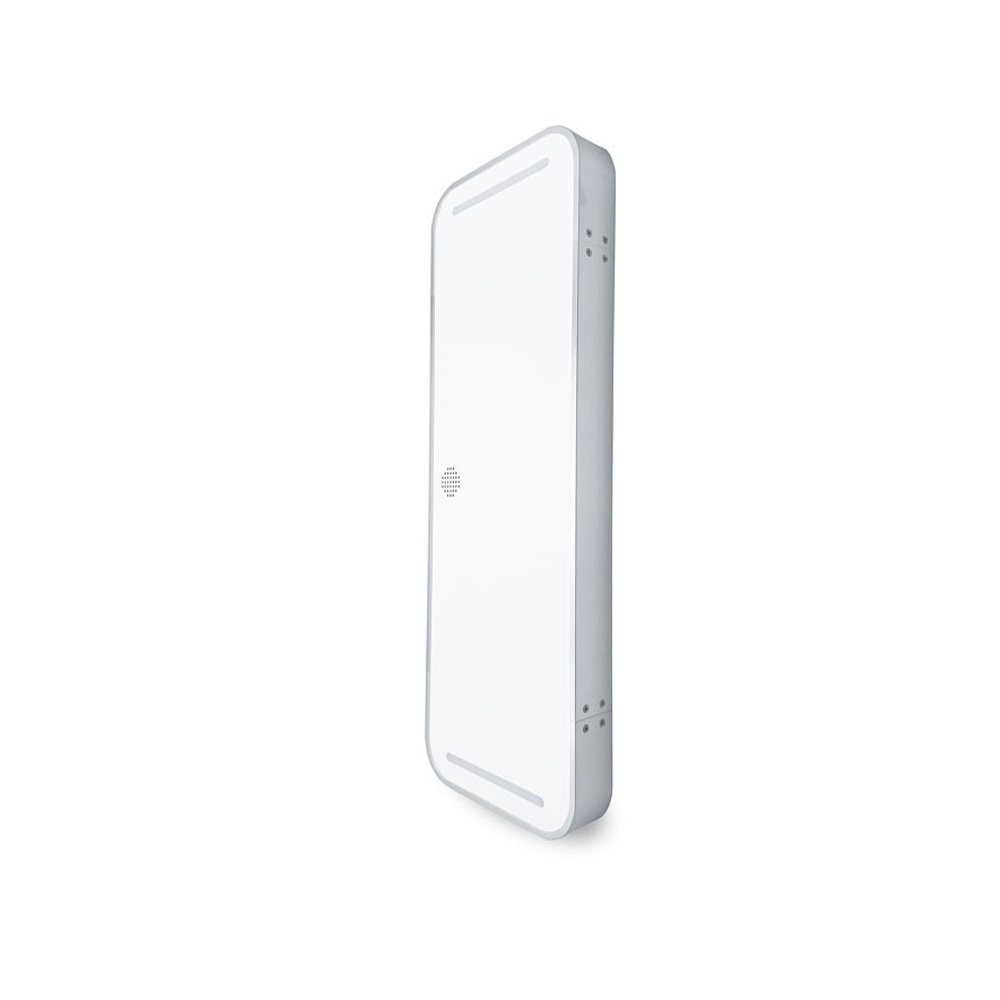

Overhead UHF RFID Antenna

LIFANGMEI introduces the Overhead UHF RFID Antenna (LFM-DZ001) – a high-performance overhead RFID antenna with 24G human radar detector. Supports ISO18000-6C protocol, output power 10dBm~33dBm adjustable, strong multi-tag reading capability, built-in alarm light and buzzer. Features RJ45 Ethernet, USB ports, GPIO 4 input + 8 output channels, compatible with Android 11, Ubuntu, Debian, OpenHarmony. Blue/Red/Green LED indicators. Ideal for shopping malls, clothing stores, luggage stores, shoe and hat stores. Trust LIFANGMEI for intelligent retail solutions.

Send Inquiry

Product Description

What If Your Store Could Read Every Tag Overhead?

Traditional RFID readers are at waist level. Shopping carts block them. Customers block them. Handbags block them. And you miss reads.

LIFANGMEI solved this with the Overhead UHF RFID Antenna (LFM-DZ001) .

Mount it on the ceiling. It reads tags from above. No obstructions. No missed reads. Just clean, reliable data.

Built for Retail Intelligence

This antenna doesn't just read tags. It reads them fast – even multiple tags at once. Output power adjusts from 10dBm to 33dBm. Strong anti-interference. Strong multi-tag recognition.

24G Human Radar Detection

The built-in radar detects when someone enters the read zone. The antenna wakes up. It reads. It logs. It alerts if needed. No wasted power. No constant scanning.

Alarm Light & Buzzer Built In

Blue for standby. Red for alarm. Green for tag authorization passed. Sensitive alarm. Safe and reliable.

Flexible Connectivity

RJ45 Ethernet (10/100/1000Mbps). USB 2.0 and USB 3.0 ports. GPIO: 4 input channels + 8 output channels (up to 250mA each). Power via 12V/2A adapter or PoE (802.3af/802.3at). Standby power just 1.76W. Working power 16.2W.

Fashionable Design, Simple Installation

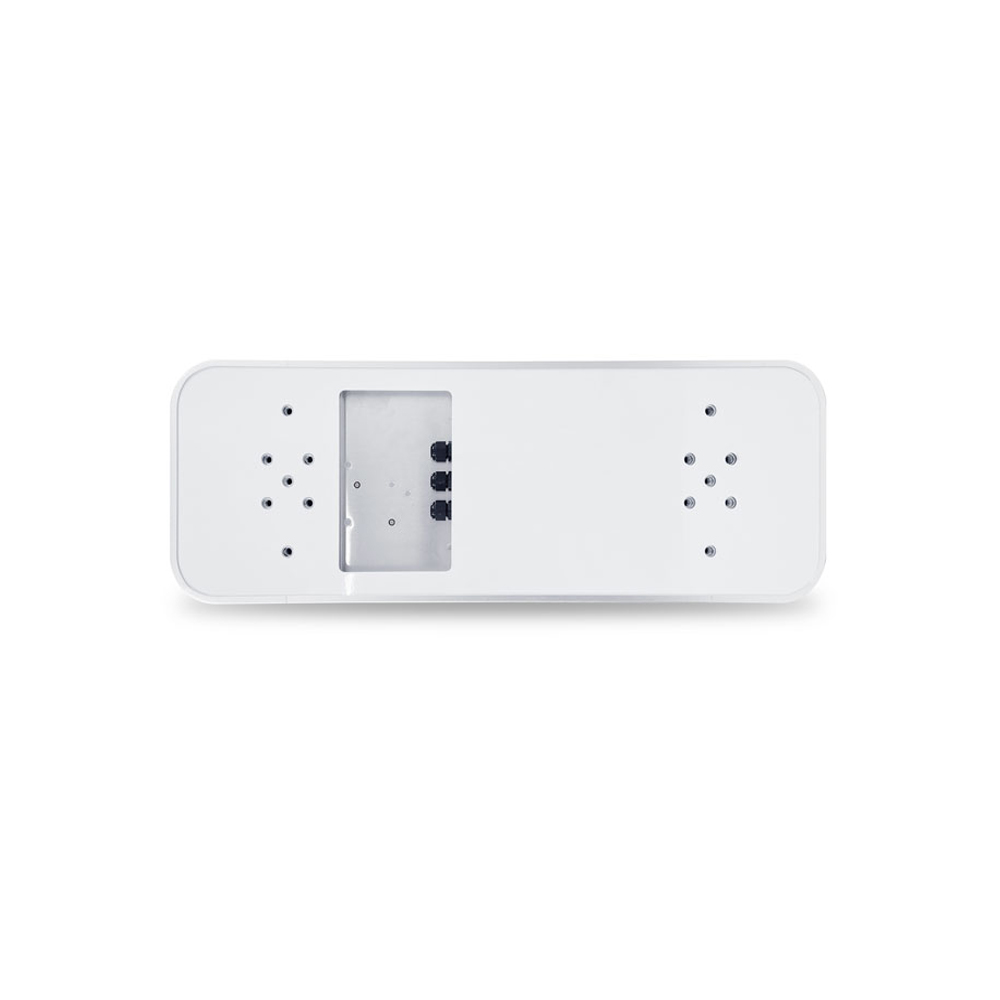

Three mounting options: hang from ceiling, attach to wall, or hook on tube. Remove end covers, mount, replace covers. That's it.

The Overhead UHF RFID Antenna (LFM-DZ001) from LIFANGMEI – overhead intelligence for your store. Contact us today.

Technical Specification

Parameter	Specification
Product Name	Overhead UHF RFID Antenna (LFM-DZ001)
Manufacturer	LIFANGMEI
Model	LFM-DZ001
Protocol	EPC C1 G2 (ISO18000-6C)
Output Power	10dBm ~ 33dBm (adjustable)
Human Radar Detector	24G
Communication Interface	RJ45 (10/100/1000Mbps Ethernet)
USB Ports	1x USB 2.0 (Device/HOST), 2x USB 2.0 HOST, 1x USB 3.0 HOST
GPIO	4 input channels + 8 output channels (up to 250mA each)
Indicator Lights	Blue (Standby), Red (Alarm), Green (Tag Authorized)
Alarm	Built-in buzzer + alarm light
Power Supply	9~24V (Standard adapter 12V/2A) / PoE (802.3af or 802.3at)
Standby Power	1.76W
Working Power	16.2W
Operating Temperature	-25℃ ~ 65℃
Storage Temperature	-45℃ ~ 85℃
Humidity	5~95% non-condensing
Dimensions	575 × 200 × 45 mm
Packaging Dimensions	790 × 245 × 90 mm
Net Weight	1.35 kg
Gross Weight	2.45 kg
Supported Operating Systems	Android 11, Ubuntu 22.04/20.04, Debian 11/12, OpenHarmony 4.0 Beta1, Orange Pi OS(Arch), Orange Pi OS(OH)
ESD Protection	Air discharge: 8kV; Contact discharge: 6kV; Surge immunity: 4kV
PoE Power Supply Capability	100m Category 5e cable; 803.at mode max load 25.1W (11.93V/2.1A)

Applications

The Overhead UHF RFID Antenna (LFM-DZ001) is ideal for:

Store Type	How It Helps
Shopping Malls	Overhead tag reading – customers walk freely, tags read automatically
Clothing Stores	Track inventory, prevent theft – the overhead antenna reads from above without obstructing displays
Luggage Stores	Read RFID tags on suitcases and bags – fast inventory, loss prevention
Shoe & Hat Stores	Overhead reading of small format RFID tags – no need for handheld scanners
Department Stores	Multi-tag reading across multiple categories – unified inventory management
Libraries	Track books with RFID tags – overhead reading enables fast check-in/check-out
Asset Tracking	Monitor high-value assets – overhead reading provides continuous visibility
